"NEW T200 Championship Series" TENNISMATIC Ball Machines

Australian owned and Made Tennis Ball Machines



 "SALE"



Limited Stock

2 YEARS WARRANTY

FREE 2 Pink Ball Pick Up Tubes

on any new T200 Series

(conditions apply )

 Cash or direct Deposit payment ONLY )

The new Tennismatic T200 Championship series Ball Machine is setting a new world standard for portable tennis ball machines by using the latest embedded computer and LCD display technology plus the most comprehensive software package.The result is a truly breathtaking piece of Aussie ingenuity that will take your game to the highest level.  It is easy to use and set up. Just turn it on, perform a calibration shot and you are ready to play.



The new T200 series has all the features and control of the T100 series plus the advantage of having a larger/ faster microcomputer, a large back-lit LCD display and membrane touch panel.  BALL DE-JAMMER - Introducing  the NEW and very  UNIQUE  Tennismatic Ball  De-Jammer .  This innovative design is the world first in the tennis ball machines.  Using the latest micro computer technology and smart software, the Tennismatic  Ball  De-Jammer constantly controls and monitors the feeding carousel conditions. When a ball jam occurs the  Ball De-Jammer will un-jam the ball and allow smooth and continuous operation  while protecting the Feeding Gear Box and Motor.

Starting from January 2012 all our TENNISMATIC  T200 Series  tennis ball machines will be equipped with this unique  Tennismatic De-Jammer module.      We can also install the de-jammer module into previously sold T100 series tennis ball machines that are not equipped with it.  Please contact our technical staff at TENNISMATIC for further information.



                        Playing Position                                              Navigational Remote

                                                                                          Fits in the palm of your hand







                        Storage Position                                     Transport Position









   T200 Championship Series  LCD SCREEN

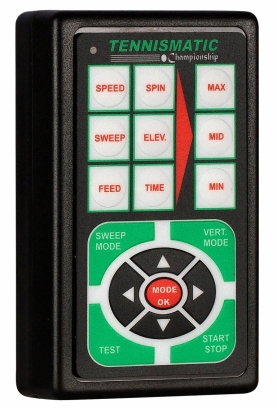

The Nagivational Remote Control

The new generation wireless Navigational remote control system not only allows you to control every aspect of the machine such as Speed, Spin, Elevation, Sweep Speed and Feed Rated. It also allows you to access Menu and Sub-Menu levels.

As with the T100 series remote control, features such as Single Shot, Machine Stand-By Mode are also incorporated in this new remote. New features such as Sweep Mode, Elevation Mode allow quick access to Horizontal Oscillation Mode and Vertical Oscillation Mode.

The Mid button allows quick 50% range setting for parameters such as speed, spin, elevation, sweep speed feed rate





T200 Championship Series Features





Model : T201



  • Variable speed control (40Km/h - 110Km/h)
  • Variable top/ bottom spin control
  • Electronic elevation (Ground stroke to lob)
  • Variable random speed oscillation control
  • Variable ball feed control
  • Multi navigational wireless remote control
  • Programmable ball delivery buzzer warning
  • Real time clock for play/hire scheduling
  • Single ball delivery
  • 24 favourite memory locations
  • Double or single court selection
  • Stand-By mode memory
  • Large LCD display with back-light. (Auto, OFF, ON)
  • Programmable audible warning for ball delivery
  • Battery level indicator
  • Password protected for hiring purposes
  • Horizontal Sweep with Wide, Narrow 2-Line Drill, 3 Line Drill, Smooth Random, 5 Position Sequential and 5 position Mixed Oscillation
  • 5 Vertical Oscillation positions with automatic speed adjustment
  • Ball type selection  (New,Ave,Old)
  • Automatic battery charger
  • Power Option : DC - AC Mains - DC & AC Mains
  • 300 ball hopper capacity
  • Weight from 20Kg - 23.5Kg











Model :T202

With all the advanced features of T201 plus

  • 24 factory-set drills for single or double court . Each drill is programmed with up to 16 shot rallies. In single court you can have up to 56 court locations and up to 66 court locations for double court .



Model : T203

With all the advanced features of T201, T202 plus

  • 24 programmable custom drills. Each drill can be  programmed with up to 16 shot rallies.  The variations of the 16 shot drill are infinite.  In single court you can have  up to  56 court locations  and up to 66 court locations for double court
  • Drill simulation for ease of playing selection



Model : T204

With all the advanced features of T201, T202 & T203 plus

  •  USB link which allows users to link their machine to a PC/ Laptop to program their own drills. The ultimate way to learn and master your tennis idol’s strokes and tactics.

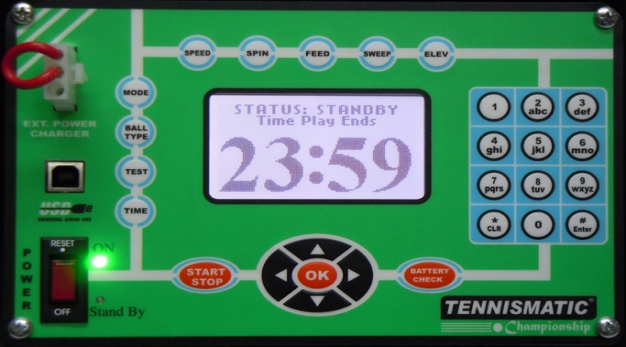

The Control Panel

At the heart of the machine is s newly developed control panel with the latest embedded microcomputer and large amounts of memory thus allowing so many Favourites and Drills to be stored and processed.

It now includes a large LCD display with 62 X 44mm viewing area and programmable backlit options (Auto, OFF, ON) for those late night sessions and saving precious battery power during day time.

Meanwhile, the membrane touch panel is easy to use and improves reliability.

Last but not least, the very comprehensive software package has been developed to make it all possible.

Time Management

This unique feature from Tennismatic Championship series Ball Machine allows you to set the game duration on the control panel. After the set period is over, the machine will stop and the buzzer will sound. You will be asked to either finish playing or choose to continue to play.

But that’s not all. If you wish to hire the machine out for few days, simply program the hiring period. When the period has expired, the machine will become inactive and you will be asked to enter your PIN numbers to re-activate the machine again.

You can also use this feature for security purposes.  Simply  program  a period that you would like the machine to be in operation and once the period expires the machine will become inactive.  You will be asked to enter your PIN numbers before it can be used again.



                                                           And of course it can also be used for time keeping.



Favourite Routines (Applicable to Model: T201, T202, T203, T204)

Save your favourite Routines into memory for later use is as easy as pressing a few

buttons on the Control Panel or on the Navigational Remote. Simply save the current

setup parameters into an empty memory slot which is not highlighted on the LCD

screen.

Loading and deleting these favourites is also just as easy. There are 24 memory slots so you won’t have to share your favourite routines with your partner’s routines.

Dont worry if you can’t remember what’s in your favourites, the LCD screen will display all the parameters for the memory slot that you selected for play.

Factory Set Drills (Applicable to Model: T202, T203, T204)

There are 24 factory-set drills that you can just call up, review on the LCD screen then select to play. Each drill may contain up to 16 shots rally and each shot can be delivered to any one position out from the 56 court positions for Single court and 66 court positions for Double court.

An audible sound will signal at the end of each rally then the rally repeats.



Standard Drills

The T200 Standard drills are programmed to play heavy top spin shots, heavy back spin shots, flat shots and lob/volley shots. With 66 different locations for the Flat, Slice and Top Spin Shots and 57 shots for the volley/lob you will have a wide selection of shot combinations.Below are some examples of the types of shots that would be available for the standard drills.



Note: These diagrams are for illustrative purposes and may change in the future



The standard drills on the T202, T203 and T204 can have up to 16 shots per drill and has a combination of different shots to enhance your tennis experience.

Custom Set Drills (Applicable to Model: T203, T204)

If all that is not enough, we provide another 24 memory slots for you to create your own drills. To program, simply use the Navigational Remote or the Control Panel to move the cursor to the desired court position on the simulated LCD screen, select and repeat the process for up to 16 positions then the rest will be done by the built-in computer software. You will be moments away from practising your own master strokes.



Pro Set Drills (Applicable to Model: T204)

This feature is reserved for the die-hard Tennis nuts. With the USB Link, you can link your machine to a PC/ Laptop to program your own 24 Pro Set Drills with varying parameters such as Speed, Spin, Elevation, Sweep Speed, Feed Rate etc..



Added Security Features

The T200 Championship Series Ball Machine can be password protected so that only you can use it at certain times. This would be extremely useful for when you are away on holidays or work for extended periods of time or you want to hire out the ball machine to other tennis players.



Upgrades

Tennismatic Championship series Ball Machine can easily be upgraded to higher models to suit your changing needs. In most cases, we will be able to upgrade your machine within 24 hours or even while you wait.

Warranty

Tennismatic Championship series Ball Machines come with 2 years factory warranty on parts and labour (except for batteries). We also offer a one off free service any timewithin the first year.



T200 Comparsion Chart

Model

T201

T202

T203

T204

Features









Speed

20-110km/h

20-110km/h

20-110km/h

20-110km/h

Spin

Top/Back Spin

Top/Back Spin

Top/Back Spin

Top/Back Spin

Ball Feed Interval

2-15 Seconds

2-15 Seconds

2-15 Seconds

2-15 Seconds

Elevation

Electronic

Electronic

Electronic

Electronic

Single/Double Court

Yes

Yes

Yes

Yes

 Ball Capacity

300

300

300

300

Ball Dejammer

Yes

Yes

Yes

Yes

Ball Hopper Sand Filter

Yes

Yes

Yes

Yes

Propulsion

Wheels

Wheels

Wheels

Wheels

Remote

Navigational

Navigational

Navigational

Navigational

Battery Level Indicator

Yes

Yes

Yes

Yes

Favorite Memory

24 Locations

24 Locations

24 Locations

24 Locations

Factory Set Drill

No

24 factory-set drills , each drill can be up to 16 shots

24 factory-set drills , each drill can be up to 16 shots

24 factory-set drills , each drill can be up to 16 shots

Custom Set Drill

No

No

24 custom drills.  Each drill can be up to 16 shots.

24 custom drills.  Each drill can be up to 16 shots.

Single /Double Court Selection

Yes

Yes

Yes

Yes

Single/Double Court Drill Location



56 For Single

64 For Double

56 For Single

64 For Double

56 For Single

64 For Double

USB LINK to Laptop/PC (to customise your drills)

No

No

No

Yes

Horizontal Oscillation









Smooth Random

Yes

Yes

Yes

Yes

Programmable Sequence

(5 Positions)

5 Horizontal Oscillation positions (combination of vertical & horizontal gives 25 court positions)

  5 Horizontal Oscillation positions (Combination of vertical & horizontal gives 25 court positions)

5 Horizontal Oscillation positions (combination of vertical & horizontal gives 25 court positions)

5 Horizontal Oscillation positions (combination of vertical & horizontal gives 25 court positions)

Programmable Mix

(5 Positions)

Yes

Yes

Yes

Yes

2 Line Drill

(Narrow/Wide)

Yes



Yes

Yes

Yes

3 Line Drill

Yes

Yes

Yes

Yes

Vertical Oscillation









Programmable Sequence

(5 Positions)

5 Vertical Oscillation positions with automatic speed adjustment (combination of vertical & horizontal gives 25 court positions)

5 Vertical Oscillation positions with automatic speed adjustment (combination of vertical & horizontal gives 25 court positions)



5 Vertical Oscillation positions with automatic speed adjustment (combination of vertical & horizontal gives 25 court positions)



5 Vertical Oscillation positions with automatic speed adjustment (combination of vertical & horizontal gives 25 court positions)

Programmable Mix

Yes

Yes

Yes

Yes

Stand-By Mode Memory

  Yes

Yes

Yes

Yes

Ball Type Selection

 (New,Avg,Old)

  (New,Avg,Old)

   (New,Avg,Old)

 (New,Avg,Old)

LCD Display with backlight

(Auto, OFF,ON)

(Auto, OFF,ON)

(Auto, OFF,ON)

(Auto, OFF,ON)

Control Panel

State -Of-The -Art touch buttons control panel

State -Of-The -Art touch buttons control panel

State -Of-The -Art touch buttons control panel

State -Of-The -Art touch buttons control panel

Real Time Clock

(For time management)

Yes

Yes

Yes

Yes

Password Protection

Yes

Yes

Yes

Yes

Power Option

DC or AC/DC

DC or AC/DC

DC or AC/DC

DC or AC/DC

Internal Battery Incl.

Yes

Yes

Yes

Yes

Internal Battery playing time

2-4 Hours

2-4 Hours

2-4 Hours

2-4 Hours



Battery Charger

Incl.

Yes

(3A Automatic Battery Charger) 4-5 hours  Charging Time

Yes

(3A Automatic Battery Charger) 4-5 hours  Charging Time

 Yes

(3A Automatic Battery Charger) 4-5 hours  Charging Time

Yes

(3A Automatic Battery Charger) 4-5 hours  Charging Time

External Heavy Duty Battery

Optional

(up to additional 6 hours )

Optional

(up to additional 6 hours)

Optional

(up to additional 6 hours)

Optional

(up to additional 6 hours)

External Heavy Duty Battery Smart Charger

Optional

Optional

Optional

Optional

Weight KG

22.5 - 23

22.5 - 23

22.5 - 23

22.5 - 23

Older machines were installed with flat wheels and the speed can go up to 140km/ph.

With the latest machines that have curved wheels , instead of flat wheels, the speed is approx. 110km/ph.  Machines with curve wheels will deliver the  balls in the court area more accurately.



DIMENSIONS CM:





PLAYING POSITION:      68 L x 36 W x 83 H

STORAGE POSITION:      52 L x 42 W x 65 H

WITHOUT THE HOPPER: 47 L X 36 W X 55 H





Packaging size= 1 carton , 59x 47 x 70cm



T200 Price List



T201 Models



DC Model

$3454.00 ex. GST

$3799.00 incl. GST

Stocktake Sale

 $2590.50 ex.GST

$2849.55 Incl. GST



AC/DC Model

$3770.00ex. GST

$4147.00 incl. GST

Stocktake Sale

$2827.50 ex. GST

$3110.25 incl. GST

T202 Models



DC Model

$3726.00 ex GST

$4099.00 incl GST

Stocktake Sale

$2794.45 ex.GST

$3073.95 incl. GST



AC/DC Model

$4042.00 ex. GST

$4446.20 incl. GST

Stocktake Sale

$3031.50 ex.GST

$3334.65 incl. GST



T203 Models



DC Model

$4135.00 ex GST

$4549.00 incl GST

Stocktake Sale

$3101.25 ex. GST

$3411.38 incl. GST



AC/DC Model

$4451.00 ex. GST

$4896.10 incl. GST

Stocktake Sale

$3338.25 ex. GST

$3672.10 incl. GST

T204 Models



DC Model

$4545.00 ex GST

$4999.00 incl GST



AC/DC Model

$4861.00 ex. GST

$5347.10 incl. GST



Ex.GST prices apply to customers outside Australia.

Incl. GST prices apply to Australian Customers

The Prices  listed above are SALE PRICES

(DC=Battery)  (AC/DC= Battery & Mains)
